Home » Products & Services » Verpama Machines » Verpama BlissFormer

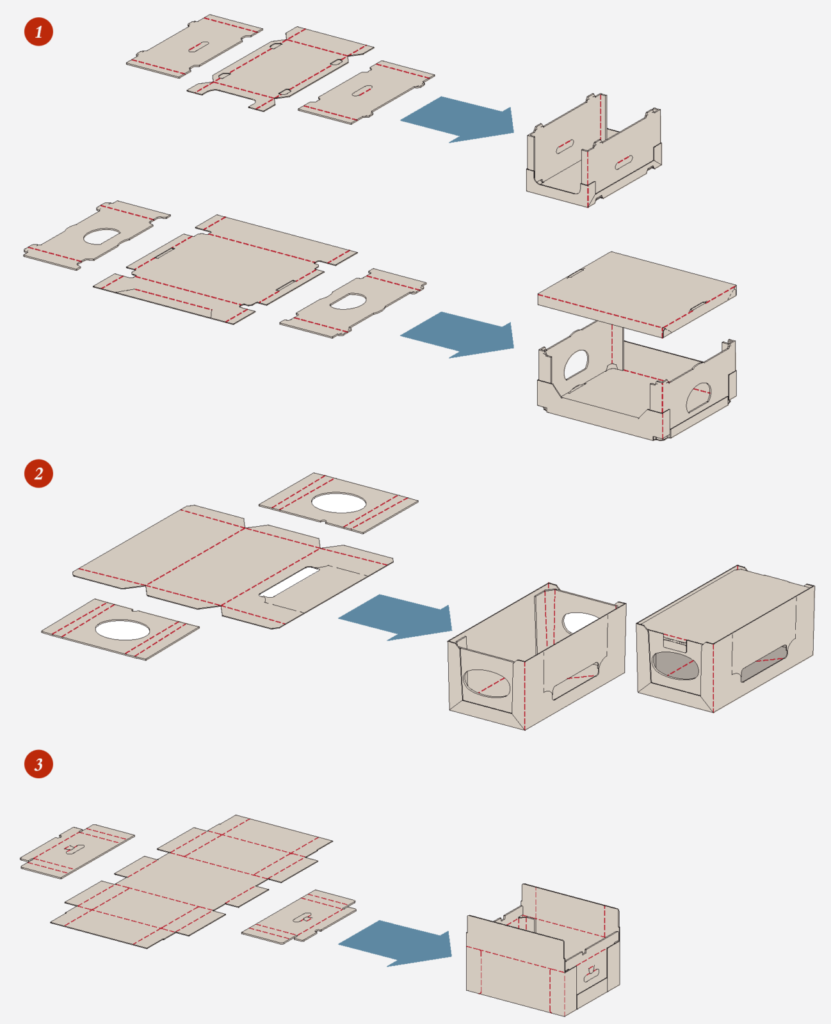

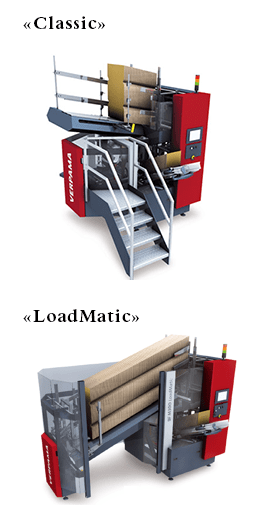

Medium to large boxes from 3 cardboard blanks. Many possibilities. And the possibility to optimize carton costs. The BlissFormer for medium to large boxes from 3 cardboard blanks. The BlissFormer is the optimiser of our erectors. It uses advanced technology that allows to produce a wide range of boxes. Considering the available format range and options, such as stacking noses and folding, it is also one of the most compact machines for this range of formats in the marketplace. The BlissFormer optimizes cardboard use by allowing a mix of different cardboard qualities (1 body and 2 side blanks). Two basic models: «Classic» and «LoadMatic» Besides the well known «Classic» version with loading via stairs, there is the «LoadMatic» version which was developed due to the demand for greater autonomy and ergonomics. Here the machine can be loaded from the ground and the loading capacity is increased by about 70%. The «LoadMatic» can also be installed to certain existing Verpama machines.
Machine types:
Series* | Version | Axes | Adjustable |
BF S100 | 1 basic format and 1 height | 0 | no |
BF M300 | 1 basic format and several heights | 3 | only heights |
BF M500 | several basic formats and several heights | 5 | manually |
*every time, size of the base: SB, WB, WWB
Operational efficiency | up to 30 boxes/ minute |
Maximum blank size* | up to 1200 x 1200 mm |
Cardboard quality | all available types of corrugated cardboard |
Capacity | body magazine: 1400 mm «Classic» body magazine: 2400 mm «LoadMatic» side magazine: 1100 mm |
Weight | about 1800 kg «Classic» about 2200 kg «LoadMatic» |
Power connection | 3 x 400VAC 3LNPE 50Hz 16A |
Pneumatic connection | 6.0 bar (consumption of approx. 5 litres/cycle) |
Control | control with PLC Siemens Simatic S7 |
Hot-melt adhesive system | Robatech or Nordson |
*depending on the box structure (other dimensions upon request)
BabyTray | JuniorTray | TrayFormer | BlissFormer | |
Max blank size |
up to 800 x 800 mm | up to 1100 x 1100 mm | up to 1200 x 1200 mm | up to 1200 x 1200 mm |
Dimensions | Length: 1680 cm, Width: 1030 cm, Height: 2100 cm |
Length: 2300 cm, Width: 1700 cm, Height: 2500 cm |
«Classic»: Length: 2465 cm, Width: 2100 cm, Height: 3100 cm «Loadmatic»: Length: 3833 cm, Width: 2204 cm, Height: 3100 cm |
«Classic»: Length: 2917 cm, Width: 2465 cm, Height: 3100 cm «Loadmatic»: Length: 3833 cm, |
Weight | about 700 kg | about 1100 kg | «Classic» about 1600 kg «LoadMatic» about 2000 kg |
«Classic» about 1800 kg «LoadMatic» about 2200 kg |
Capacity | Body magazine: 600 mm |
Body magazine: 1300 mm |
«Classic»: Body magazine: 1400 mm «Loadmatic»: Body magazine: 2400 mm |
«Classic»: Body magazine: 1400 mm «Loadmatic»: Body magazine: 2400 mm Side cartridge: 1100 mm |
Control | control with PLC Siemens Simatic S7 |
control with PLC Siemens Simatic S7 |
control with PLC Siemens Simatic S7 |
control with PLC Siemens Simatic S7 |
Hot-melt adhesive system | Robatech or Nordson |
Robatech or Nordson |
Robatech or Nordson |
Robatech or Nordson |
