Series* | Version | Axes | Adjustable |
TF S100 | 1 basic format and 1 height | 0 | no |
TF A100 | 1 basic format and several heights (Ökotray) | 1 | only heights |
TF M400 | Several basic formats and several heights | 4 | manually |
TF A500 | Several basic formats and several heightsn | 5 | automatically |
TF A700 | Several basic formats and several heights, and stacking supports | 7 | automatically |
TF A900 | Several basic formats and several heights, stacking supports and asymmetric box | 9 | automatically |
Operational efficiency | up to 30 boxes/ minute |
Maximum blank size* | up to 1200 x 1200 mm |
Cardboard quality | all available types of corrugated cardboard |

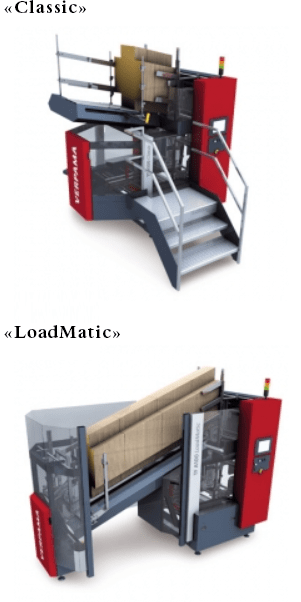

Capacity | body magazine: 1400 mm «Classic» body magazine: 2400 mm «LoadMatic» |
Weight | about 1600 kg «Classic» about 2000 kg «LoadMatic» |
Power connection | 3 x 400VAC 3LNPE 50Hz 16A |
Pneumatic connection | 6.0 bar (consumption of approx. 5 litres/cycle) |
Control | control with PLC Siemens Simatic S7 |
Hot-melt adhesive system | Robatech or Nordson |
![]() |
![]() |
![]() |
![]() |
|
BabyTray | JuniorTray | TrayFormer | BlissFormer | |
Max blank size |
up to 800 x 800 mm | up to 1100 x 1100 mm | up to 1200 x 1200 mm | up to 1200 x 1200 mm |
Dimensions | Length: 1680 cm, Width: 1030 cm, Height: 2100 cm |
Length: 2300 cm, Width: 1700 cm, Height: 2500 cm |
«Classic»: Length: 2465 cm, Width: 2100 cm, Height: 3100 cm «Loadmatic»: Length: 3833 cm, Width: 2204 cm, Height: 3100 cm |
«Classic»: Length: 2917 cm, Width: 2465 cm, Height: 3100 cm «Loadmatic»: Length: 3833 cm, |
Weight | about 700 kg | about 1100 kg | «Classic» about 1600 kg «LoadMatic» about 2000 kg |
«Classic» about 1800 kg «LoadMatic» about 2200 kg |
Capacity | Body magazine: 600 mm |
Body magazine: 1300 mm |
«Classic»: Body magazine: 1400 mm «Loadmatic»: Body magazine: 2400 mm |
«Classic»: Body magazine: 1400 mm «Loadmatic»: Body magazine: 2400 mm Side cartridge: 1100 mm |
Control | control with PLC Siemens Simatic S7 |
control with PLC Siemens Simatic S7 |
control with PLC Siemens Simatic S7 |
control with PLC Siemens Simatic S7 |
Hot-melt adhesive system | Robatech or Nordson |
Robatech or Nordson |
Robatech or Nordson |
Robatech or Nordson |
