Verpama lid applicator
Verpama lid applicator. PUTS THE LID ON.
Our lid applicator’ got it. The latest robot technology ensures an efficient process in erecting and shaping a flat blank into a lid and puts it on top of the existing boxes.The Verpama lid applicator erects flat blanks into a lid and puts it on an open box. The Verpama lid applicator is the perfect addition to existing Tray- and BlissFormers. By using two robots, the lid erecting and placing process is extremely reliable with highest performance at the same time.
Technical data
Examples of cardboard boxes
Technical data
- Proven robot technology ensures highest process reliability
- Top performance of up to 25 lids/minute
- No interruption of production, as the lid is placed during process
- Minimal maintenance effort
- Compact design
- Good accessibility
Machine type:
| A M600 | |
| Version | several basic formats and several heights |
| Axes | 6 |
| Adjustable | manually |
| Operational efficiency | up to 25 boxes/ minute |
| Maximum blank size* | up to 750 x 750 mm |
| Cardboard quality | all available types of corrugated cardboard |
| Capacity | body magazine: 1300 mm |
| Weight | about 1600 kg |
| Power connection | 3 x 400VAC 3LNPE 50Hz 16A |
| Pneumatic connection | 6.0 bar (consumption of approx. 8 litres/cycle) |
| Control* | control with PLC Siemens Simatic S7 |
| Robotics | 2 high-performance industrial robots |
| Hot-melt adhesive system | Robatech or Nordson |
*depending on the box structure (other dimensions upon request)

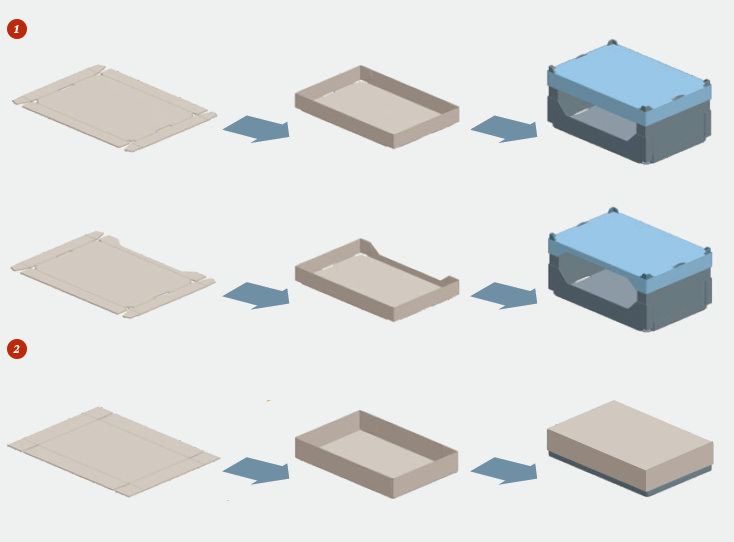

Examples of cardboard boxes
- Lid for boxes with stacking noses
- Lid for boxes without stacking noses
